Counters

Counters configuration and manipulation are controlled by the GC command.

There are three counter types:

  • Timers (count elapsed time)
  • Distancers (count traveled distance)
  • Counters (count situation occurrences)

For each configured counter, a signal Cxx exists. The signal becomes true when the counter value reaches the user-defined threshold.

Continuous vs Recycling Counters​

When a counter reaches its threshold, it can:

  • Continue counting (continuous counter) using recycle flag C
  • Reset to zero (recycling counter) using recycle flag R

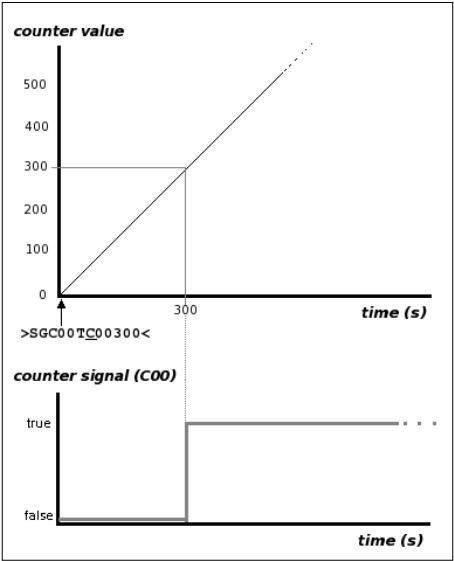

Continuous counter behavior:

Continuous counter behavior

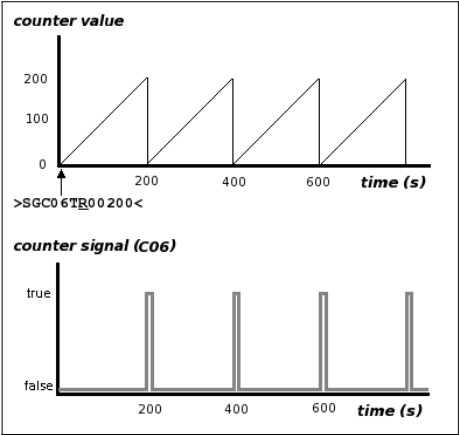

Recycling counter behavior:

Recycling counter behavior

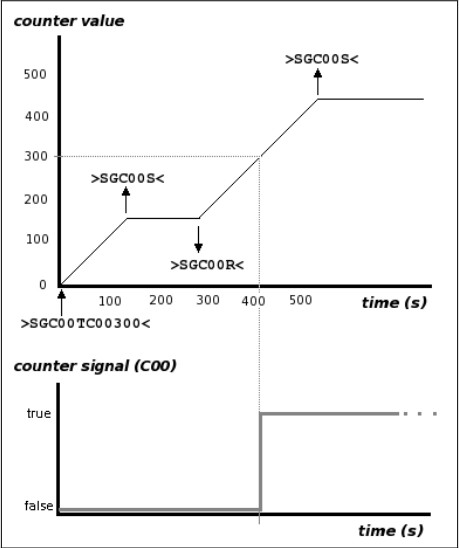

Suspend and Resume​

A counter may be suspended and resumed with the GC command using S and R on a previously defined counter.

Suspend and resume behavior

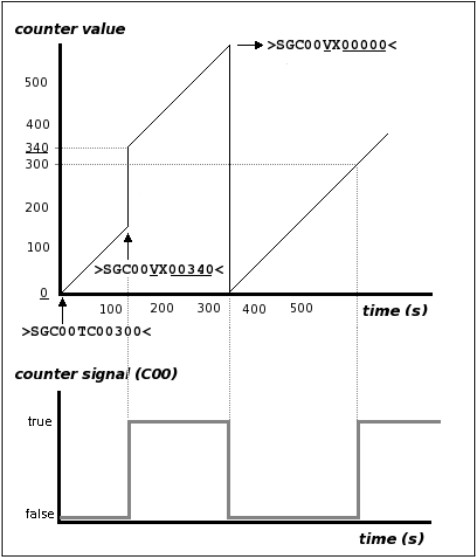

Manually Setting Counter Value​

A counter value may be manually changed with GC using command V on a previously defined counter.

After setting a value, the counter keeps counting from the new value and retains its counting configuration.

When setting a value, the recycle selector can use X to preserve the existing recycle flag. If R or C is used instead of X, both value and recycle configuration are updated.

Querying a counter value is done with:

>QGC00V<

Manual value set behavior

Delta Parameter​

Counters can include an optional delta so the value increments only when the counting variable reaches that delta.

Examples:

  • Timer counting minutes instead of seconds
  • Distancer counting kilometers instead of meters

Counter-Type Counters (on-demand)​

COUNTER-type counters increment on command basis. Use command I to increment the value.

Use with Events​

Counter manipulation/configuration can be included in event actions. This allows counters to be started, resumed, suspended, or incremented automatically when a defined condition occurs.

See GC for command syntax details and examples.
